Home / Catalog / AVSO-30 set / Pumping stations for AVSO-30
Enerpred

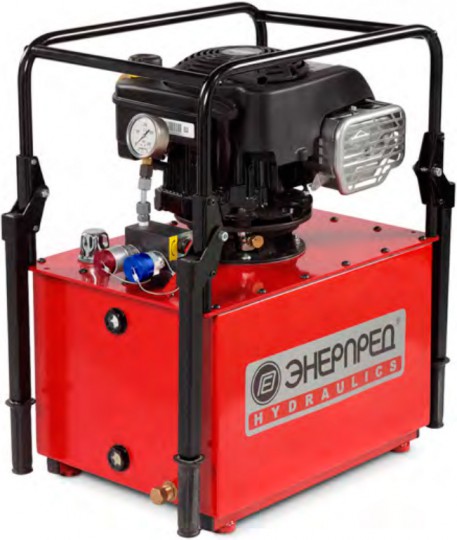

Pumping stations for AVSO-30

Key characteristics:
Operating pressure: 300 Bar
Получить коммерческое предложение
Models
Development according to your specifications
Output flow rate , l/min
Model Output
flow
rate, l/min 		Drive
power, kW 		Useful
volume
of
the
hydraulic
tank, l 		Dimensions, (mm) BxLxH Weight
(without
the
oil), kg
NBR30-7A40-1 8 5,0 40 620 57
NBR30-11A40-1 11,0 9,5 40 540×625×750 79
NER30-11A63-1 11 12 63 560×625×890 96
NER30-5,7A40T1 5,7 3,0 40 420×625×750 58
NER30-7,4A40T1 7,4 4,0 40 420×625×750 67
NER30-10А63Т1 10,0 5,5 63 540×625×890 77
NDR30-11A40-1 11,0 5,5 40 542×700×830 94
NDR30-11А63-1 11,0 5,5 63 542×700×970 99
Useful volume of the hydraulic tank , l
Model Output
flow
rate, l/min 		Drive
power, kW 		Useful
volume
of
the
hydraulic
tank, l 		Dimensions, (mm) BxLxH Weight
(without
the
oil), kg
NBR30-7A40-1 8 5,0 40 620 57
NBR30-11A40-1 11,0 9,5 40 540×625×750 79
NER30-11A63-1 11 12 63 560×625×890 96
NER30-5,7A40T1 5,7 3,0 40 420×625×750 58
NER30-7,4A40T1 7,4 4,0 40 420×625×750 67
NER30-10А63Т1 10,0 5,5 63 540×625×890 77
NDR30-11A40-1 11,0 5,5 40 542×700×830 94
NDR30-11А63-1 11,0 5,5 63 542×700×970 99
Model Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
NBR30-7A40-1 8 5,0 40 620 57
NBR30-11A40-1 11,0 9,5 40 540×625×750 79
NER30-11A63-1 11 12 63 560×625×890 96
NER30-5,7A40T1 5,7 3,0 40 420×625×750 58
NER30-7,4A40T1 7,4 4,0 40 420×625×750 67
NER30-10А63Т1 10,0 5,5 63 540×625×890 77
NDR30-11A40-1 11,0 5,5 40 542×700×830 94
NDR30-11А63-1 11,0 5,5 63 542×700×970 99
Model
NBR30-7A40-1
NBR30-11A40-1
NER30-11A63-1
NER30-5,7A40T1
NER30-7,4A40T1
NER30-10А63Т1
NDR30-11A40-1
NDR30-11А63-1
Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH
8 5,0 40 620
11,0 9,5 40 540×625×750
11 12 63 560×625×890
5,7 3,0 40 420×625×750
7,4 4,0 40 420×625×750
10,0 5,5 63 540×625×890
11,0 5,5 40 542×700×830
11,0 5,5 63 542×700×970
Weight (without the oil), kg
57
79
96
58
67
77
94
99
Output flow rate, l/min
Drive power, kW
Useful volume of the hydraulic tank, l
Dimensions, (mm) BxLxH
Weight (without the oil), kg
NBR30-7A40-1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
8 5,0 40 620 57
NBR30-11A40-1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
11,0 9,5 40 540×625×750 79
NER30-11A63-1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
11 12 63 560×625×890 96
NER30-5,7A40T1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
5,7 3,0 40 420×625×750 58
NER30-7,4A40T1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
7,4 4,0 40 420×625×750 67
NER30-10А63Т1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
10,0 5,5 63 540×625×890 77
NDR30-11A40-1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
11,0 5,5 40 542×700×830 94
NDR30-11А63-1 Output flow rate, l/min Drive power, kW Useful volume of the hydraulic tank, l Dimensions, (mm) BxLxH Weight (without the oil), kg
11,0 5,5 63 542×700×970 99
Specify the appropriate parameters
Comment to the order
Сontact details

Designed to create the pressure and flow of hydraulic fluid in the system ENERPRED device for the production of rolling stock on the rails.

Features:

  • Single-stage supply of the hydraulic pump
  • Management: discharge valve
  • Unloading crane functions: to open and close the hydraulic flow
  • The safety valve protects against excess working pressure in the hydraulic system
  • Pressure gauge for monitoring the pressure in the hydraulic system
  • Quick couplings for connection to the hydraulic system efficiency
  • The compact design and light weight, the presence of four folding arms on a protective frame for easy carrying
