Strippers hydraulic with built-in drive 2/3 gripping

Ideal for disassembling interference fit bushings, bearings, gears, gears and pulleys.

Hydraulic puller with integral drive - ideal for removing interference fit bushings, bearings, gears, gears and pulleys

Integrated pump with removable 360-degree handle allows quick and efficient removal of parts

Anti-corrosive chrome plating

Safety valve


You can order a model with your parameters, if a suitable one is not in our catalog.

Key characteristics:
Серия: СГА...
Усилие: от 4 до 30 тс
Внешний диаметр захвата: от 40 до 550 мм
Models
Model with your options

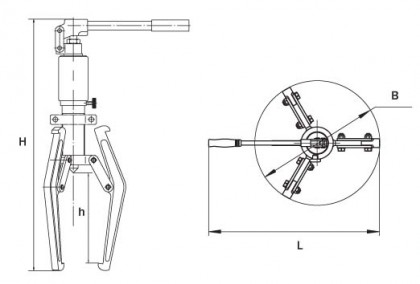

Drawing
Important information
Model Capacity t Capacity t Диаметр
снимаемой
детали
мм
Reach
h
mm
Stroke mm Dimensionsmm (BxLxH) Weight kg
SGA305 5 3,3 200 140 55 60×125×510 6,5
SGA310 10 6,6 250 160 55 76×100×620 9
SGA320 20 13,4 350 200 68 90×140×770 14
SGA330 30 20 400 250 50 175×220×530 24
SGA350 50 33,4 500 350 80 170×260×650 35
Capacity t Capacity t Диаметр
снимаемой
детали
мм
Reach
h
mm
5 3,3 200 140
10 6,6 250 160
20 13,4 350 200
30 20 400 250
50 33,4 500 350
Stroke mm Dimensionsmm (BxLxH) Weight kg
55 60×125×510 6,5
55 76×100×620 9
68 90×140×770 14
50 175×220×530 24
80 170×260×650 35
Model SGA305 Capacity t 5 Capacity t 3,3 Диаметр
снимаемой
детали
мм
200 Reach
h
mm
140 Stroke mm 55 Dimensionsmm (BxLxH) 60×125×510 Weight kg 6,5
Model SGA310 Capacity t 10 Capacity t 6,6 Диаметр
снимаемой
детали
мм
250 Reach
h
mm
160 Stroke mm 55 Dimensionsmm (BxLxH) 76×100×620 Weight kg 9
Model SGA320 Capacity t 20 Capacity t 13,4 Диаметр
снимаемой
детали
мм
350 Reach
h
mm
200 Stroke mm 68 Dimensionsmm (BxLxH) 90×140×770 Weight kg 14
Model SGA330 Capacity t 30 Capacity t 20 Диаметр
снимаемой
детали
мм
400 Reach
h
mm
250 Stroke mm 50 Dimensionsmm (BxLxH) 175×220×530 Weight kg 24
Model SGA350 Capacity t 50 Capacity t 33,4 Диаметр
снимаемой
детали
мм
500 Reach
h
mm
350 Stroke mm 80 Dimensionsmm (BxLxH) 170×260×650 Weight kg 35
Specify the appropriate parameters
Comment to the order
Сontact details

The content of this publication is subject to copyright of JSC TD ENERPRED and cannot be reproduced (even in part) without appropriate permission. JSC TD "ENERPRED" reserves the right to make any changes to the design and characteristics of the tool offered in this catalog without prior notice. Instrument specifications, including weight, dimensions and other parameters, may vary slightly.
