Grimping sling ropes press

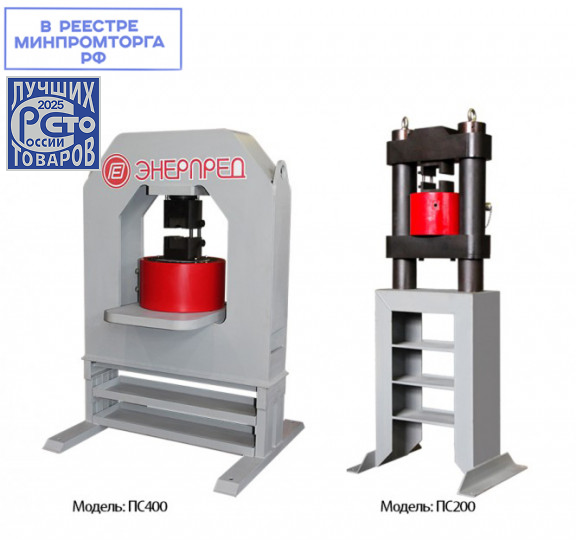

The model of the line crimper PS200 is designed for crimping the ends of the ropes with a diameter of 4 to 20 mm with an aluminum sleeve, the model of the line cord crimper PS400 is designed for crimping the ends of the ropes with a diameter of 6 to 36 mm with an aluminum sleeve.

To work with the PS200 crimper, the NEE-1.6I10T1 station is recommended. For the PS400 pressure tester, the NEE12 / 32-16 / 6I63T2-Mu station is recommended, and for the automation of the work process, the station with an electric contact pressure gauge: NEE12 / 32-32 / 12I160T2-Mu

The PS400 press is completed with high pressure hoses (RVD 12,7.166.2500.0,18.13 / 13-90.G1 / 2 / G1 / 2-U1, 2 pcs.)

The PS200 press is not equipped with high pressure hoses (ordered separately by the customer).

Key characteristics:
Series: PS...
Capacity: 200-400 t
Pressure: 320-700 bar
Models
Model with your options
Drawing
Important information
Capacity , t
Model Capacity t PressureBar Stroke mm Working
oil
capacity
cm3
Dimensionsmm (BxLxH) Weight kg Recommended
pump
PS200 202 700 30 618 500×660×1577 331 NEE-1,6I10T1 priceRequest
PS400 400 320 50 7536 1103×1214×1809 1400 NEE12/32-16/6I63T2-Му; NEE12/32-32/12I160Т2-Му priceRequest
Model Capacity t PressureBar Stroke mm Working
oil
capacity
cm3
Dimensionsmm (BxLxH) Weight kg Recommended
pump
PS200 202 700 30 618 500×660×1577 331 NEE-1,6I10T1
PS400 400 320 50 7536 1103×1214×1809 1400 NEE12/32-16/6I63T2-Му; NEE12/32-32/12I160Т2-Му
Model
PS200
PS400
Capacity t PressureBar Stroke mm Working
oil
capacity
cm3
202 700 30 618
400 320 50 7536
Dimensionsmm (BxLxH) Weight kg Recommended
pump
500×660×1577 331 NEE-1,6I10T1
1103×1214×1809 1400 NEE12/32-16/6I63T2-Му; NEE12/32-32/12I160Т2-Му
Model PS200 Capacity t 202 PressureBar 700 Stroke mm 30 Working
oil
capacity
cm3
618 Dimensionsmm (BxLxH) 500×660×1577 Weight kg 331 Recommended
pump
NEE-1,6I10T1
Model PS400 Capacity t 400 PressureBar 320 Stroke mm 50 Working
oil
capacity
cm3
7536 Dimensionsmm (BxLxH) 1103×1214×1809 Weight kg 1400 Recommended
pump
NEE12/32-16/6I63T2-Му; NEE12/32-32/12I160Т2-Му

Set of templates for press PS200

Crimping ferrule
DIN3093

Steel cable
diameter,
mm

Dimensions,
(mm) BxLxH

Designation

Weight,
kg

Um4,5

4,0...4,5

35x84x40

Um 4,5 - 200

0,9

Um5

4,6...5,1

35x84x40

Um 5 - 200

0,9

Um6

5,2...5,7

35x84x50

Um 6 - 200

1,11

Um6,5

5,8...6,4

35x84x50

Um 6,5 - 200

1,1

Um7

6,5...7,3

35x84x50

Um 7 - 200

1,1

Um8

7,4...8,2

35x84x50

Um 8 - 200

1

Um9

8,3...9,0

35x84x60

Um 9 - 200

1,28

Um10

9,1...10,1

35x84x60

Um 10 - 200

1,26

Um11

10,2...11,2

35x84x60

Um 11 - 200

1,24

Um12

11,3...12,3

35x84x60

Um 12 - 200

1,21

Um13

12,4...13,4

35x84x80

Um 13 - 200

1,58

Um14

13,5...14,5

35x84x80

Um 14 - 200

1,54

Um16

14,6...16,1

35x84x80

Um 16 - 200

1,47

Um18

16,2...18,2

35x84x80

Um 18 - 200

1,43

Um20

18,3...20,2

35x84x100

Um 20 - 200

1,73

Set of templates for press PS400

Crimping ferrule
DIN3093
Steel cable
diameter,
mm
Dimensions,
(mm) BxLxH
Designation Weight,
kg
Um9 8,3…9,0 65х120х60 Um 9 3,55
Um10 9,1…10,1 65х120х60 Um 10 3,53
Um11 10,2…11,2 65х120х60 Um 11 3,51
Um12 11,3…12.3 65х120х60 Um 12 3,48
Um13 12,4…13,4 65х120х80 Um 13 4,49
Um14 13,5…14,5 65х120х80 Um 14 4,45
Um16 14,6…16,1 65х120х80 Um 16 4,40
Um18 16,2…18,2 65х120х80 Um 18 4,33
Um20 18,3…20,2 65х120х110 Um 20 5,40
Um22 20,3…22,4 65х120х110 Um 22 5,32
Um24 22,5…24,6 65х120х110 Um 24 5,22
Um26 24,7…26,9 65х120х130 Um 26 6,32
Um28 27,0…28,6 65х120х130 Um 28 6,15
Um30 28,7…30,8 65х120х130 Um 30 6,00
Um32 30,9…32,7 65х120х145 Um 32 6,74
Um34 32,8…34,9 65х120х145 Um 34 6,49
Um36 35,0…37,1 65х120х145 Um 36 6,27

Recommended pumps

Model Nominal pressure
1st stage,
bar
Nominal pressure
2nd stage,
bar
Pump rate
1st stage,
l/min.
Pump rate
2nd stage,
l/min.
Pump drive Dimensions,
(mm) BxLxH
Weight
(without fluid),
kg
НЭЭ12/32-16/6И63Т2-Му
120 320 16 6 N=4,0kW;
380V
514х650х850 85
НЭЭ12/32-32/12И160Т2-Му
120 320 32 12 N=7,5kW;
380V
620x640x960 140
