Enerpred

Remote control valves

Key characteristics:
Nominal flow rate: 10-12 l/min
Pressure: 70-80 MPa
Models
Development according to your specifications
Model Type of scheme Name PressureMPa Expenditurel/min
GR-3DR-2 D Hydraulic spool distributor 3-position 4-linear, with manual control and locked neutral 80 10
GR-3IR-2 I Hydraulic spool distributor 3-position 4-linear, with manual control and unloaded neutral 80 10
GE-2GR-2 G Hydraulic spool distributor 2-position 4-line, with electromagnetic control 80 10

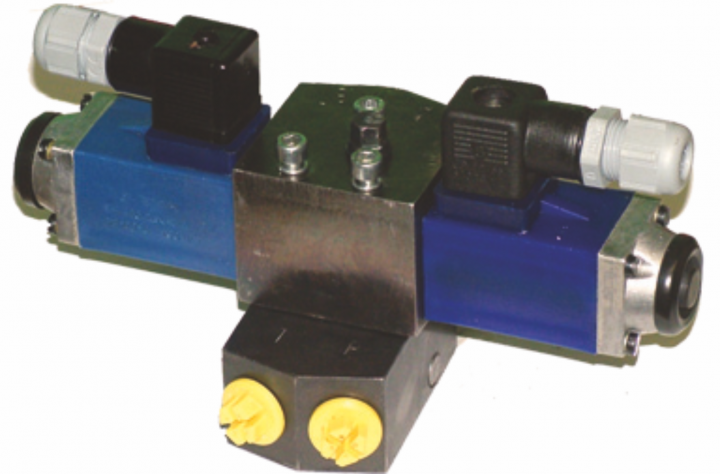

GE-3DR-2 D Hydraulic spool distributor 3-position 4-line, with electromagnetic control and locked neutral 80 10
GE-3IR-2 I Hydraulic spool distributor 3-position 4-line, with electromagnetic control and unloaded neutral 80 10
GR-3K-2 K Valve distributor, hydraulic, 3-position, 4-linear, with manual control and locked neutral 70 12
Type of scheme Name PressureMPa Expenditurel/min
D Hydraulic spool distributor 3-position 4-linear, with manual control and locked neutral 80 10
I Hydraulic spool distributor 3-position 4-linear, with manual control and unloaded neutral 80 10
G Hydraulic spool distributor 2-position 4-line, with electromagnetic control 80 10
D Hydraulic spool distributor 3-position 4-line, with electromagnetic control and locked neutral 80 10
I Hydraulic spool distributor 3-position 4-line, with electromagnetic control and unloaded neutral 80 10
K Valve distributor, hydraulic, 3-position, 4-linear, with manual control and locked neutral 70 12
Model GR-3DR-2 Type of scheme D Name Hydraulic spool distributor 3-position 4-linear, with manual control and locked neutral PressureMPa 80 Expenditurel/min 10
Model GR-3IR-2 Type of scheme I Name Hydraulic spool distributor 3-position 4-linear, with manual control and unloaded neutral PressureMPa 80 Expenditurel/min 10
Model GE-2GR-2 Type of scheme G Name Hydraulic spool distributor 2-position 4-line, with electromagnetic control PressureMPa 80 Expenditurel/min 10
Model GE-3DR-2 Type of scheme D Name Hydraulic spool distributor 3-position 4-line, with electromagnetic control and locked neutral PressureMPa 80 Expenditurel/min 10
Model GE-3IR-2 Type of scheme I Name Hydraulic spool distributor 3-position 4-line, with electromagnetic control and unloaded neutral PressureMPa 80 Expenditurel/min 10
Model GR-3K-2 Type of scheme K Name Valve distributor, hydraulic, 3-position, 4-linear, with manual control and locked neutral PressureMPa 70 Expenditurel/min 12
Specify the appropriate parameters
Comment to the order
Сontact details

Remote control valves are designed to control actuators in any convenient place of the hydraulic system at a distance from the pumping station (for example, directly next to the jack). They are a distributor controlling the flow of working fluid mounted on an external collector plate, to which hoses from a pressure source (pumping station) are connected.
