Enerpred

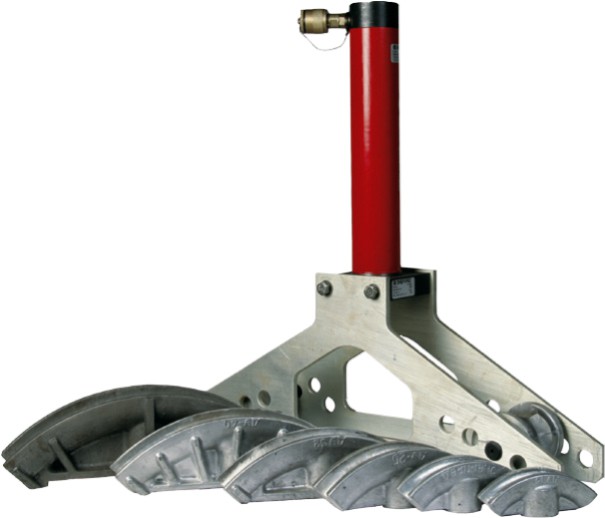

Hydraulic frame-closed pipe benders

  • Designed for bending water and gas pipes in a cold condition.
  • Lightweight and compact design in aluminum alloy allows for on-site installation of piping and plumbing systems;
  • Minimal time of preparation of benders to work;
  • Maximum bending - 90°;
  • Complete with the set of punches to the appropriate range of bend radius;
  • To control the accuracy of bending are equipped with angle indicator.
Models
Accessories
Model with your options

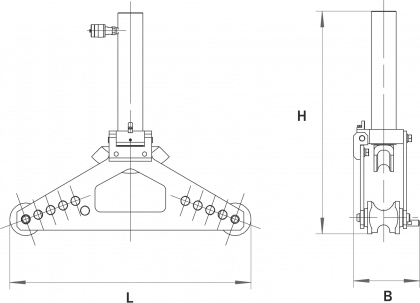

Drawing
Important information
Model Inner
D/R
of
bending
mm
Bending
capacity
t
Pipe
wall
thickness
mm
Dimensionsmm (BxLxH) Weight kg Recommended
pump
TG1032 8/60, 10/70, 15/90, 20/100, 25/135, 32/170 11,3 2,00-4,00 158×530×394 17 NRG-7010
TG1550 15/90, 20/100, 25/135, 32/170, 40/205, 50/240 14,1 2,35-4,50 170×680×621 33,3 NRG-7010
Model
TG1032
TG1550
Inner
D/R
of
bending
mm
Bending
capacity
t
Pipe
wall
thickness
mm
Dimensionsmm (BxLxH)
8/60, 10/70, 15/90, 20/100, 25/135, 32/170 11,3 2,00-4,00 158×530×394
15/90, 20/100, 25/135, 32/170, 40/205, 50/240 14,1 2,35-4,50 170×680×621
Weight kg Recommended
pump
17 NRG-7010
33,3 NRG-7010
Model TG1032 Inner
D/R
of
bending
mm
8/60, 10/70, 15/90, 20/100, 25/135, 32/170 Bending
capacity
t
11,3 Pipe
wall
thickness
mm
2,00-4,00 Dimensionsmm (BxLxH) 158×530×394 Weight kg 17 Recommended
pump
NRG-7010
Model TG1550 Inner
D/R
of
bending
mm
15/90, 20/100, 25/135, 32/170, 40/205, 50/240 Bending
capacity
t
14,1 Pipe
wall
thickness
mm
2,35-4,50 Dimensionsmm (BxLxH) 170×680×621 Weight kg 33,3 Recommended
pump
NRG-7010

Indicators and gauges

Specify the appropriate parameters
Comment to the order
Сontact details
