Enerpred

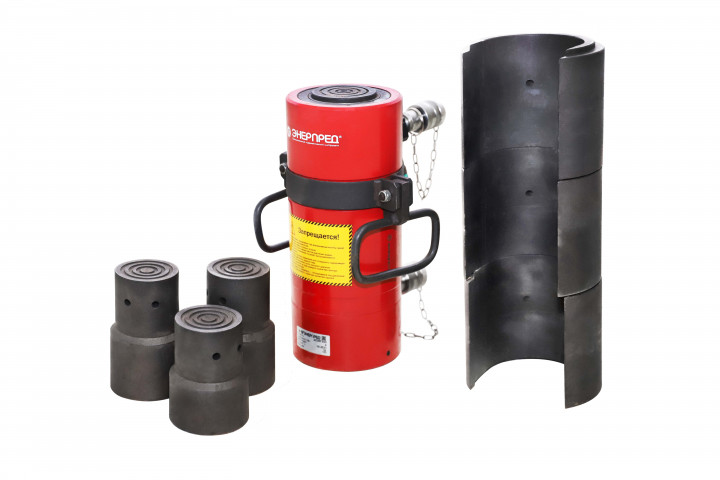

Cylinders of stage hoisting

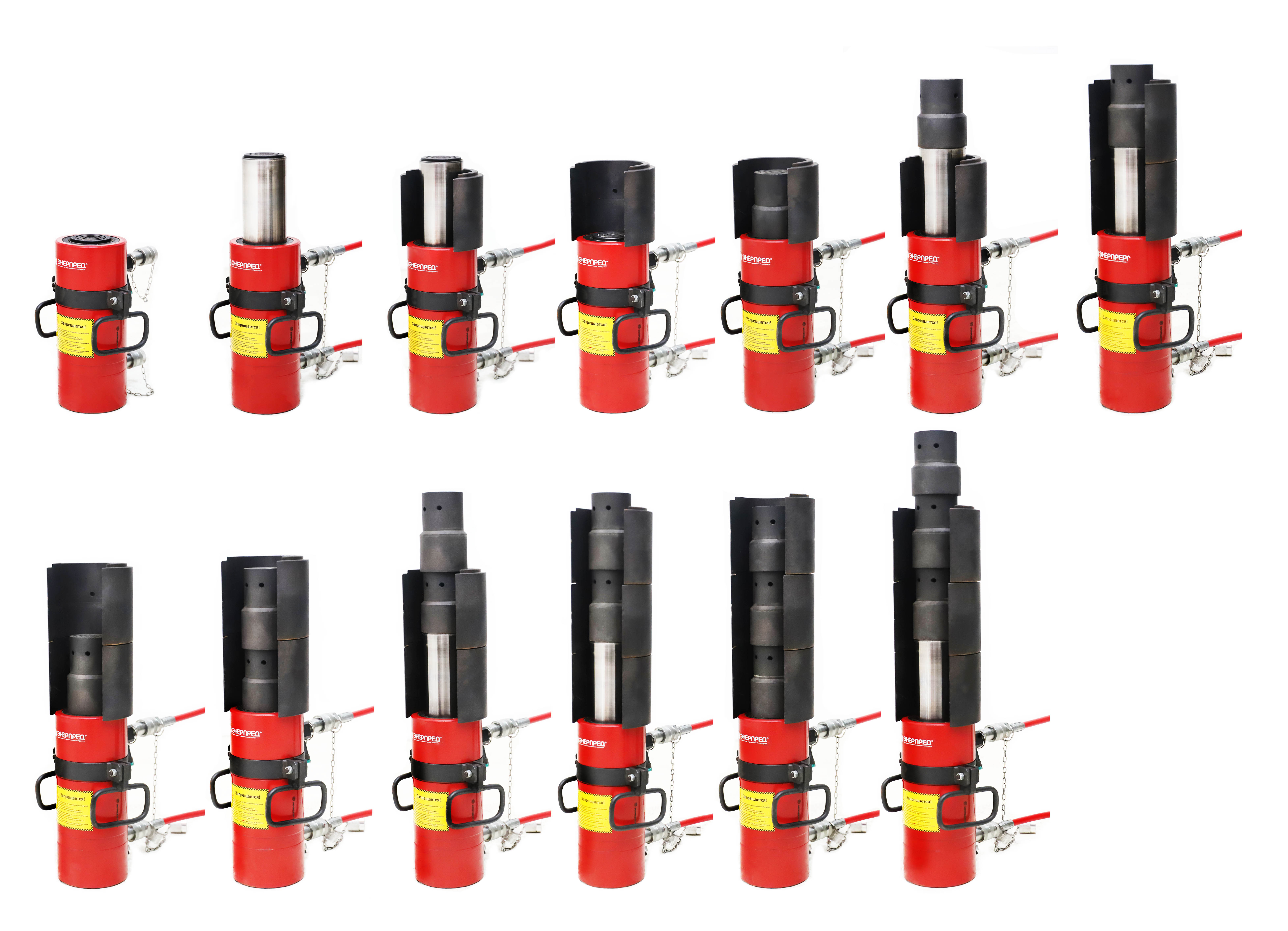

The unique system allows to raise weight to the height and fix it in the up position for a long time.

Key characteristics:
Series: DS...p...
Сapacity: from 27 to 35 tons
Pressure: 70 MPa
Stock Return: Spring-loaded
Models
Accessories
Model with your options
Drawing
Important information
Model Сapacitytons Height
H
mm
Height
H
max
mm
Height
of
lift
H1
mm
Number
of
rings
and
pads
pieces
Ring
height
h2
mm / weight
Height
of
pad
h1
mm / weight
Dimensionsmm (BxLxH) Using
cylinder
Weight kg Saddle Recommended
pump
DS50G500 56 313 829 516 3; 3 135/5,8 111/3,9; 135/4,8 190×256×313 DG50G150 61,63 PPD100 NRG7020R
DS100P515 109,8 298 803 505 3; 3 135/7 91/6,1; 135/9,2 240×260×298 DG100P150 92 PPD100 NRG7035
DS200P510 202 369 879 510 7; 6 65/5,9 95/17; 65/12; 55/6,9 320×322×369 DG200P150 220 PPD200 NRG7080
Сapacitytons Height
H
mm
Height
H
max
mm
Height
of
lift
H1
mm
56 313 829 516
109,8 298 803 505
202 369 879 510
Number
of
rings
and
pads
pieces
Ring
height
h2
mm / weight
Height
of
pad
h1
mm / weight
Dimensionsmm (BxLxH)
3; 3 135/5,8 111/3,9; 135/4,8 190×256×313
3; 3 135/7 91/6,1; 135/9,2 240×260×298
7; 6 65/5,9 95/17; 65/12; 55/6,9 320×322×369
Using
cylinder
Weight kg Saddle Recommended
pump
DG50G150 61,63 PPD100 NRG7020R
DG100P150 92 PPD100 NRG7035
DG200P150 220 PPD200 NRG7080
Model DS50G500 Сapacitytons 56 Height
H
mm
313 Height
H
max
mm
829 Height
of
lift
H1
mm
516 Number
of
rings
and
pads
pieces
3; 3 Ring
height
h2
mm / weight
135/5,8 Height
of
pad
h1
mm / weight
111/3,9; 135/4,8 Dimensionsmm (BxLxH) 190×256×313 Using
cylinder
DG50G150 Weight kg 61,63 Saddle PPD100 Recommended
pump
NRG7020R
Model DS100P515 Сapacitytons 109,8 Height
H
mm
298 Height
H
max
mm
803 Height
of
lift
H1
mm
505 Number
of
rings
and
pads
pieces
3; 3 Ring
height
h2
mm / weight
135/7 Height
of
pad
h1
mm / weight
91/6,1; 135/9,2 Dimensionsmm (BxLxH) 240×260×298 Using
cylinder
DG100P150 Weight kg 92 Saddle PPD100 Recommended
pump
NRG7035
Model DS200P510 Сapacitytons 202 Height
H
mm
369 Height
H
max
mm
879 Height
of
lift
H1
mm
510 Number
of
rings
and
pads
pieces
7; 6 Ring
height
h2
mm / weight
65/5,9 Height
of
pad
h1
mm / weight
95/17; 65/12; 55/6,9 Dimensionsmm (BxLxH) 320×322×369 Using
cylinder
DG200P150 Weight kg 220 Saddle PPD200 Recommended
pump
NRG7080

Manual hydraulic pumps for equipment with hydraulic retrection

Electric pumps equipped with solenoid valve

Specify the appropriate parameters
Comment to the order
Сontact details

The content of this publication is subject to copyright of JSC TD ENERPRED and cannot be reproduced (even in part) without appropriate permission. JSC TD "ENERPRED" reserves the right to make any changes to the design and characteristics of the tool offered in this catalog without prior notice. Instrument specifications, including weight, dimensions and other parameters, may vary slightly.
