Enerpred

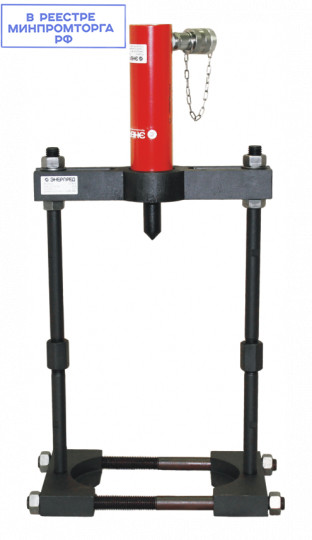

Clamp pullers

Key characteristics:
Series: SGX...
Effort: 11-35 ts
Outer diameter of the gripper: 35-420 mm
Models
Development according to your specifications
Drawing
Model Effortts The range of outer diameters of the parts to be removed Dmm Capture depthmm Dimensions (BxLxH)mm Weightkg Recommended pump
SGH10 11,3 35-280 176, 376 250×391×684 20 NRG-7010
SGH35 35,8 80-420 30, 280, 530 340×664×1025 90 NRG-7010
Model
SGH10
SGH35
Effortts The range of outer diameters of the parts to be removed Dmm Capture depthmm Dimensions (BxLxH)mm
11,3 35-280 176, 376 250×391×684
35,8 80-420 30, 280, 530 340×664×1025
Weightkg Recommended pump
20 NRG-7010
90 NRG-7010
Model SGH10 Effortts 11,3 The range of outer diameters of the parts to be removed Dmm 35-280 Capture depthmm 176, 376 Dimensions (BxLxH)mm 250×391×684 Weightkg 20 Recommended pump NRG-7010
Model SGH35 Effortts 35,8 The range of outer diameters of the parts to be removed Dmm 80-420 Capture depthmm 30, 280, 530 Dimensions (BxLxH)mm 340×664×1025 Weightkg 90 Recommended pump NRG-7010
Specify the appropriate parameters
Comment to the order
Сontact details

They are designed for dismantling gears, bearings, wheels, couplings, impellers, pulleys and other parts planted with tension, which may be exposed when removed by conventional pullers;

- The design of the clamp provides a reliable grip in the event that the shape of the part does not allow the use of a conventional puller;

- Provides the ability to apply traction force to the inner ring of the bearing - the load is not transmitted through the rolling elements, which minimizes the risk of damage to the bearing;

- The pullers include a one-way jack with a spring return rod, which can be removed and used separately.
