| Operating pressure: | 300 Bar |
| Model |
Pushing force, kN |
Effort retractor, kN |
Stroke, mm |
Working volume of oil, l |
Length of cylinder, mm |
Weight, kg | |
| TSP15G350FG | 150 | 120 | 350 | 1,9 | 687 | 26 | |
| TSP30G350FG | 300 | 200 | 350 | 3 | 687 | 39 |
| Model | Pushing force, kN | Effort retractor, kN | Stroke, mm | Working volume of oil, l | Length of cylinder, mm | Weight, kg | |
| TSP15G350FG | 150 | 120 | 350 | 1,9 | 687 | 26 | |
| TSP30G350FG | 300 | 200 | 350 | 3 | 687 | 39 |
| Model |
| TSP15G350FG |
| TSP30G350FG |
| Pushing force, kN |
| Effort retractor, kN |
| Stroke, mm |
| Working volume of oil, l |
| Length of cylinder, mm |
| Weight, kg |
| TSP15G350FG | Pushing force, kN | Effort retractor, kN | Stroke, mm | Working volume of oil, l | Length of cylinder, mm | Weight, kg | |
| 150 | 120 | 350 | 1,9 | 687 | 26 | ||
| TSP30G350FG | Pushing force, kN | Effort retractor, kN | Stroke, mm | Working volume of oil, l | Length of cylinder, mm | Weight, kg | |
| 300 | 200 | 350 | 3 | 687 | 39 |

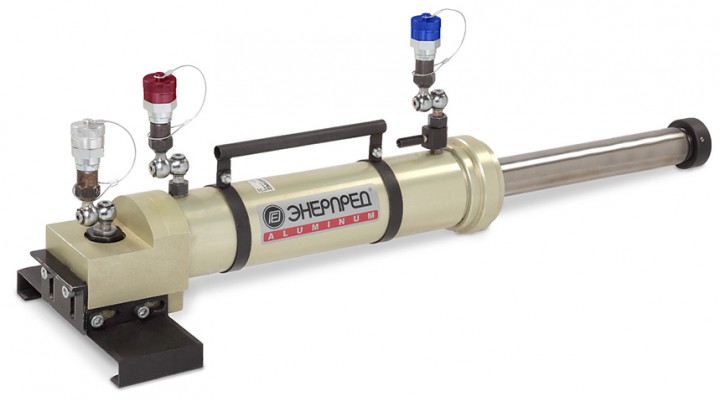

Designed for the cross movement of a roller beam along the ENERPRED bridge beam.
Manual repositioning: manual reposition of the movement cylinder on a bridge beam.
Hydraulic repositioning—automatic change of the position of the movement cylinder on a bridge beam.
