Buy hydraulic pullers with centering of the grip mechanism, price in Irkutsk

Models

Accessories

Development according to your specifications

Drawing

Important information

The content of this publication is subject to copyright of JSC TD ENERPRED and cannot be reproduced (even in part) without appropriate permission. JSC TD "ENERPRED" reserves the right to make any changes to the design and characteristics of the tool offered in this catalog without prior notice. Instrument specifications, including weight, dimensions and other parameters, may vary slightly.

Model	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
Nothing to found. Try to specify other options.
SG305	5	100	3; 2	20-180	167	263х412	5,6	NRG-7010
SG315	15	250	3; 2	35-380	245	335х700	21,3	NRG-7010
SG320	20	360	3	56-450	302	330х874	36	NRG-7020
SG3100	100	150	3	300-600	595	640х1424	263	NRG-7035
SG3100-1	100	150	3	150-600	1250	652х2068	352	NRG-7035

Model
SG305
SG315
SG320
SG3100
SG3100-1

Capacity, t	Stroke, mm	Number of jaws	Spread, mm
5	100	3; 2	20-180
15	250	3; 2	35-380
20	360	3	56-450
100	150	3	300-600
100	150	3	150-600

Reach, h	Dimensions, мм	Weight, kg	Pump
167	263х412	5,6	NRG-7010
245	335х700	21,3	NRG-7010
302	330х874	36	NRG-7020
595	640х1424	263	NRG-7035
1250	652х2068	352	NRG-7035

Capacity, t

Stroke, mm

Number of jaws

Spread, mm

Reach, h

Dimensions, мм

Weight, kg

Pump

SG305	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
	5	100	3; 2	20-180	167	263х412	5,6	NRG-7010
SG315	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
	15	250	3; 2	35-380	245	335х700	21,3	NRG-7010
SG320	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
	20	360	3	56-450	302	330х874	36	NRG-7020
SG3100	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
	100	150	3	300-600	595	640х1424	263	NRG-7035
SG3100-1	Capacity, t	Stroke, mm	Number of jaws	Spread, mm	Reach, h	Dimensions, мм	Weight, kg	Pump
	100	150	3	150-600	1250	652х2068	352	NRG-7035

Indicators and gauges

Specify the appropriate parameters

Capacity , t

Stroke , mm

Number of jaws

Spread , mm

Reach , h

Dimensions , мм

Weight , kg

Pump

Comment to the order

Terms of Reference

Сontact details

Your Name

Your Country

Your Phone

Your Company

Your City

Your Email

Соглашаюсь с обработкой персональных данных и политикой конфиденциальности

the manager

Consult with
the manager

If you have any questions, contact us and we will respond to them
Contact the manager

a reseller

Become
a reseller

We invite you to mutually beneficial cooperation for the promotion of the tool marks "Enerpred" in all regions of our country and abroad.
Send request

the catalog

Download
the catalog

We offer you to download our product catalog in PDF format
Download

Серия:	СГ...
Усилие:	от 5 до 100 тс
Внешний диаметр захвата:	от 20 до 600 мм

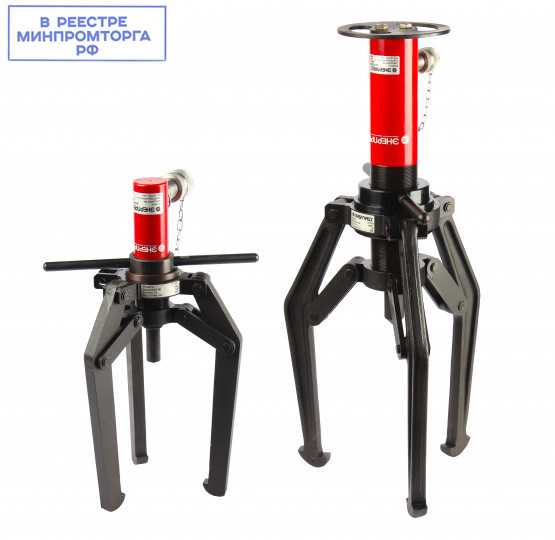

Hydraulic pullers with centering of the grip mechanism
